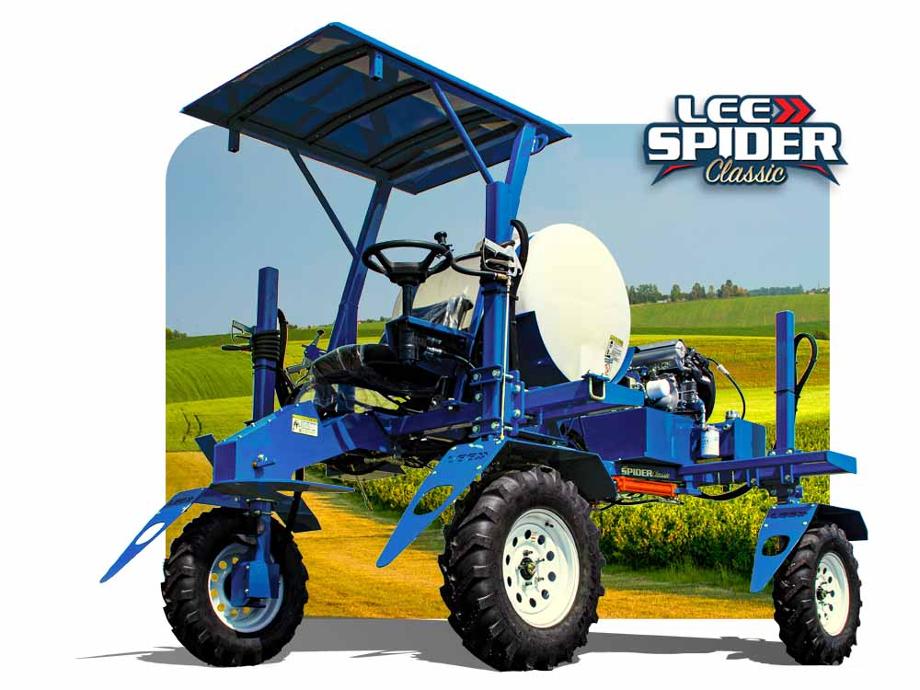

LEE Spider Classic
In recent years, growers have struggled with resistant weeds that can’t be controlled by spraying over the top of the crop. Farmers want a small spot sprayer similar to the ones we built in the 1990s.
Specialty Spot Spraying
Designed to cover crops with a solution without damaging the yield of the product.

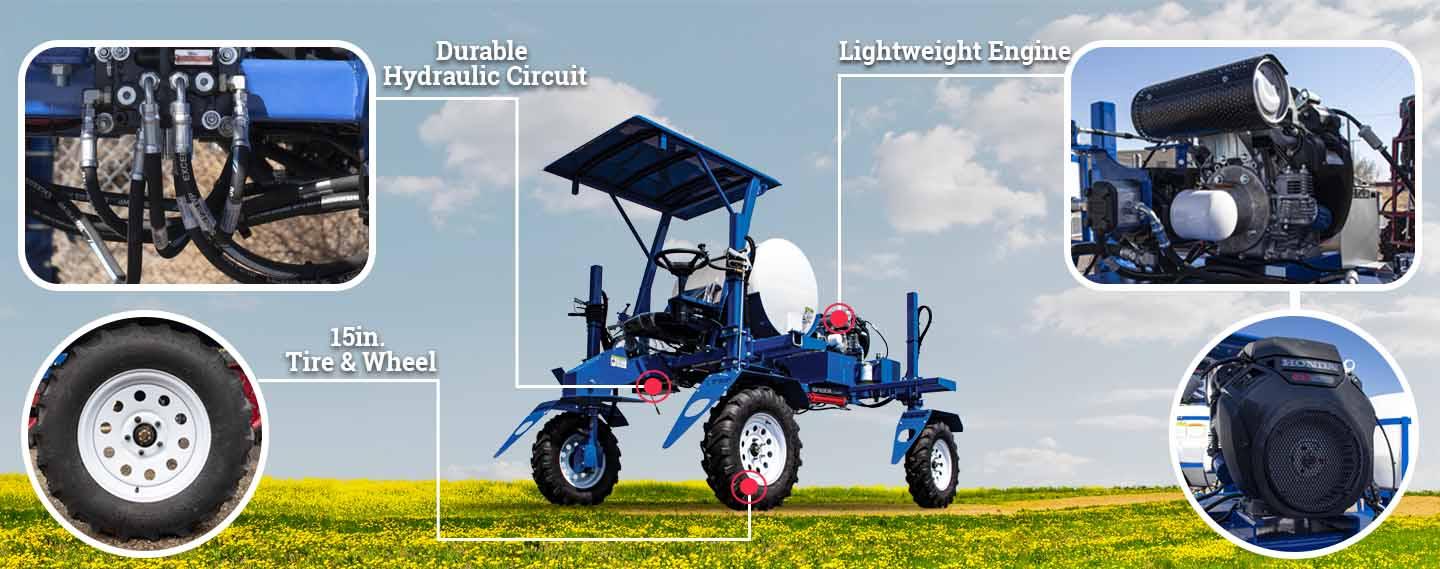

With 15in. tires and wheels, a durable hydraulic circuit, and a small engine, we are proud to present the LEE Spider Classic.
Unique Features
4-Wheel Hydrostatic Drive
No axles.
No transmission.
The wheels are powered individually by the hydraulic system, which means great power through tough terrain.
Articulated
Steering
The bending point where the two frames come together allows the back wheels and front wheels to turn simultaneously. This makes steering easier and allows for sharper turns in and out of rows.
Oscillating
Chassis
The frame's oscillation allows the tractor to travel over rugged terrain and maintain better balance on slopes. This also helps take tension off the frame, whereas a rigid solid frame would take the motion's brunt.
Configurable Options
Tank Packages................
Our applicator tanks are molded from high-density polyethylene and are both impact and chemical resistant.
They feature a lid that threads directly into the tank's fill-opening to prevent the sloshing or leaking of tank contents during transport or application.
110 Gallon Tank Package with 12V Pump Plumbing
Dual 30gal cone bottom solution tanks. 12V 5.3GPM on demand pump and plumbing.
Dual 60gal cone bottom solution tanks. 12V 5.3GPM on demand pump and plumbing.
Spray Pumps....................
Many pesticides used to control weeds, insects, and disease in field crops, ornamentals, turf, fruits, vegetables, and rights-of-way are applied with hydraulic sprayers.
12 Volt Pump 5.3 Gpm @ 60 Psi.
Higher volume centrifugal solution pump. PTO/belt driven. 50GPM @ 60PSI.
Spray System Controls..................
System monitors detect the operating conditions of the total sprayer. They are sensitive to variations in travel speed, pressure, and flow rate.
Provides manual spray control in a compact package.
Allows for the choice of liquid-filled to given PSI on the pressure gauge.
Lifts.....................................................
Loaders make light work of small farm and gardening tasks including lifting and transporting material such as wood, rocks, soil, and debris.

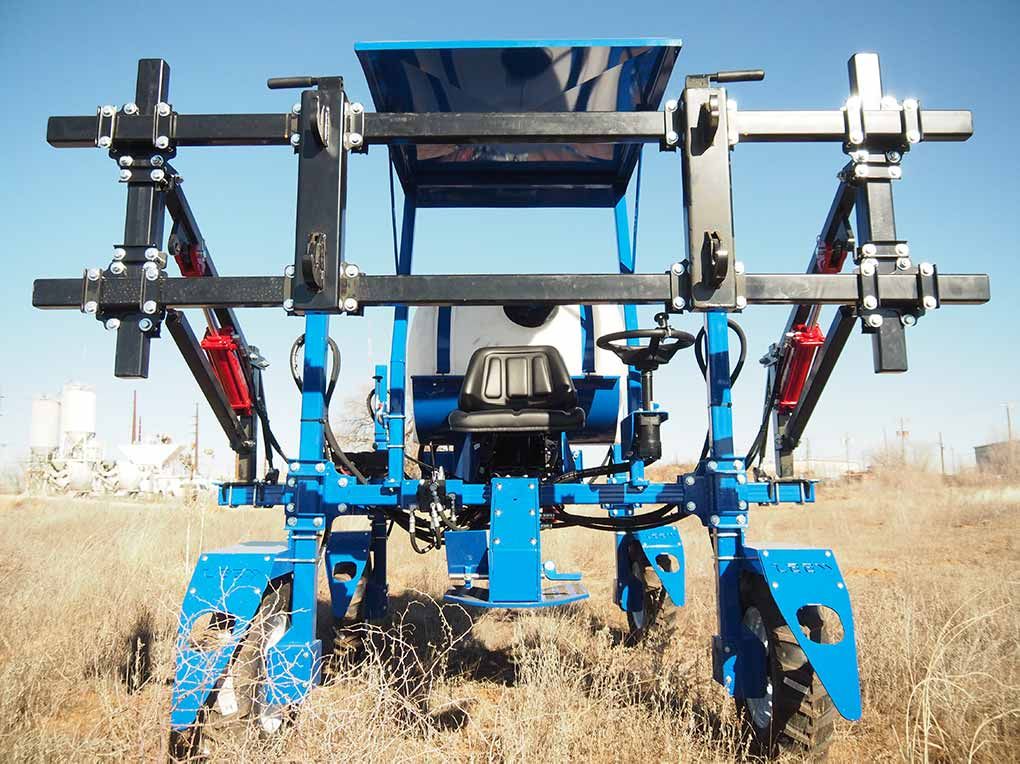

Paralleling arm front lift. Quick attach pair sold separately.
Paralleling arm rear lift. Quick attach pair sold separately.
Both a paralleling arm front lift and rear lift installed on one high-clearance tractor. Quick attach pair sold separately.
Lift Attachment w/ Quick Attach.................................................
Applicable for both front and rear attachments.

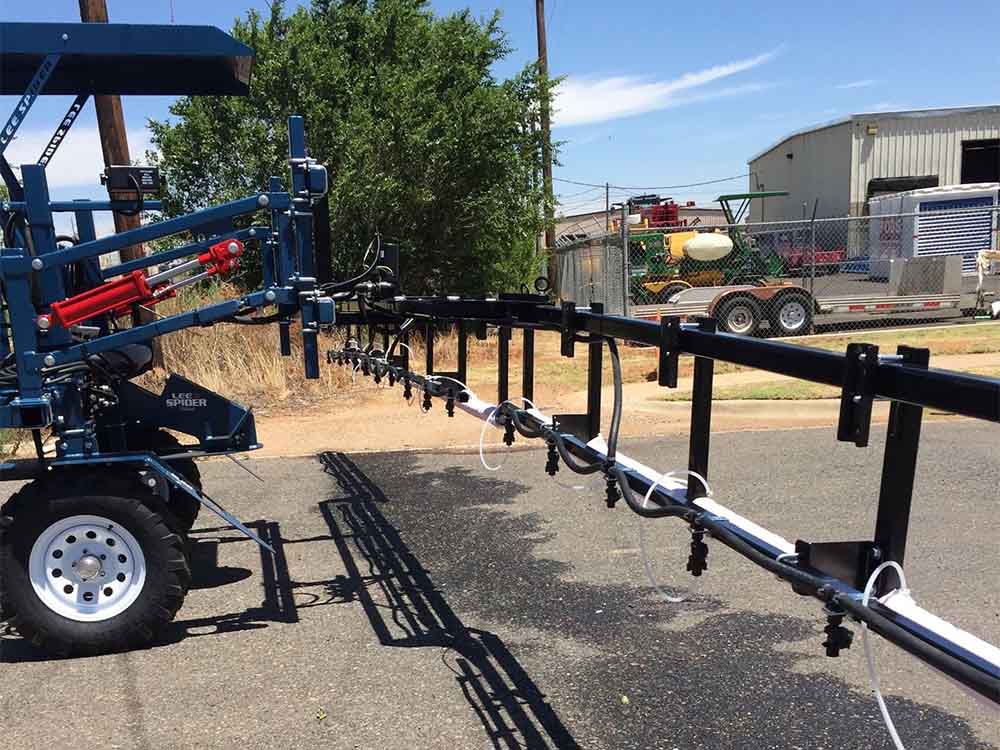

30ft. Truss manual fold spray T-boom only.
25ft. hydraulically folding multiuse boom. Folds under 120in. wide for legal transportation.
30ft. hydraulically folding spray boom. Folds under 120in. wide for legal transportation.
Customizable 30ft. wiper booms. Contact LeeAgra sales for more information.
Multi-section booms ideal for spraying multiple solutions.
Learn More>
Quick attach system ready for existing compatible attachments. *Boom not included.
Nozzles...............................................
Nozzles determine the rate of pesticide distribution at a particular pressure, forward speed, and nozzle spacing.
Applicable for both front and rear attachments.
12 nozzle bodies on the entirety of boom length.
18 nozzle bodies on the entirety of boom length.
24 nozzle bodies on the entirety of boom length.
12 nozzle bodies on the entirety of the boom length.
18 nozzle bodies on the entirety of the boom length.
24 nozzle bodies on the entirety of the boom length.
Nozzle Spacing................................
Applicable for both front and rear attachments.
Nozzle bodies for 1-section boom at 15in. spacing
Nozzle bodies for 1-section boom at 20in. spacing
Nozzle bodies for 1-section boom at 30in. spacing
Nozzle bodies for 3-section boom at 15in. spacing
Nozzle bodies for 3-section boom at 20in. spacing
Nozzle bodies for 3-section boom at 30in. spacing
Customizable Add-Ons.................
Contact LeeAgra sales for additional information and options.
Attached to your tractor.
Trimble AutoPilot Package FmX
Navigation Controller III |
TMX 2050 Display Rapid Ready Warranty.
Learn More>
Additional rider seat near operator station.
Technical Specifications
ENGINE
20HP Honda
TOP SPEED
8 MPH
TIRE & WHEEL
7.60in. x 15in.
Cleated Tire With Modular Wheel
AUX. HYDRAULIC FLOW
Optional
ROW WIDTH
Manually Adjustable
60in. - 90in.
UNDERFRAME CLEARANCE
Manually Adjustable
36in. - 66in.
TURNING RADIUS
Articulating Frame
90in. minimum turning radius
OPERATOR STATION
Open, adjustable seat & seatbelt
SOLUTION TANK
110 Gallons
SOLUTION PUMP
Optional 12v 5.3 GPM / 60 PSI
BRAKE SYSTEM
Dynamic: Hydrostatic
Static: Hydraulic circuit lock
STEERING
Side Steering Wheel
SPEED CONTROL
Manual/Foot Shift
RUNNING LIGHTS
None
WORK LIGHTS
None
FUEL TANK CAPACITY
12 Gallons
HYDRAULIC RESERVOIR CAPACITY
13.5 Gallons
DRY WEIGHT
2700lb.
Configure Your LEE Spider Classic Today!
Contact our sales team for any questions or additional information.
